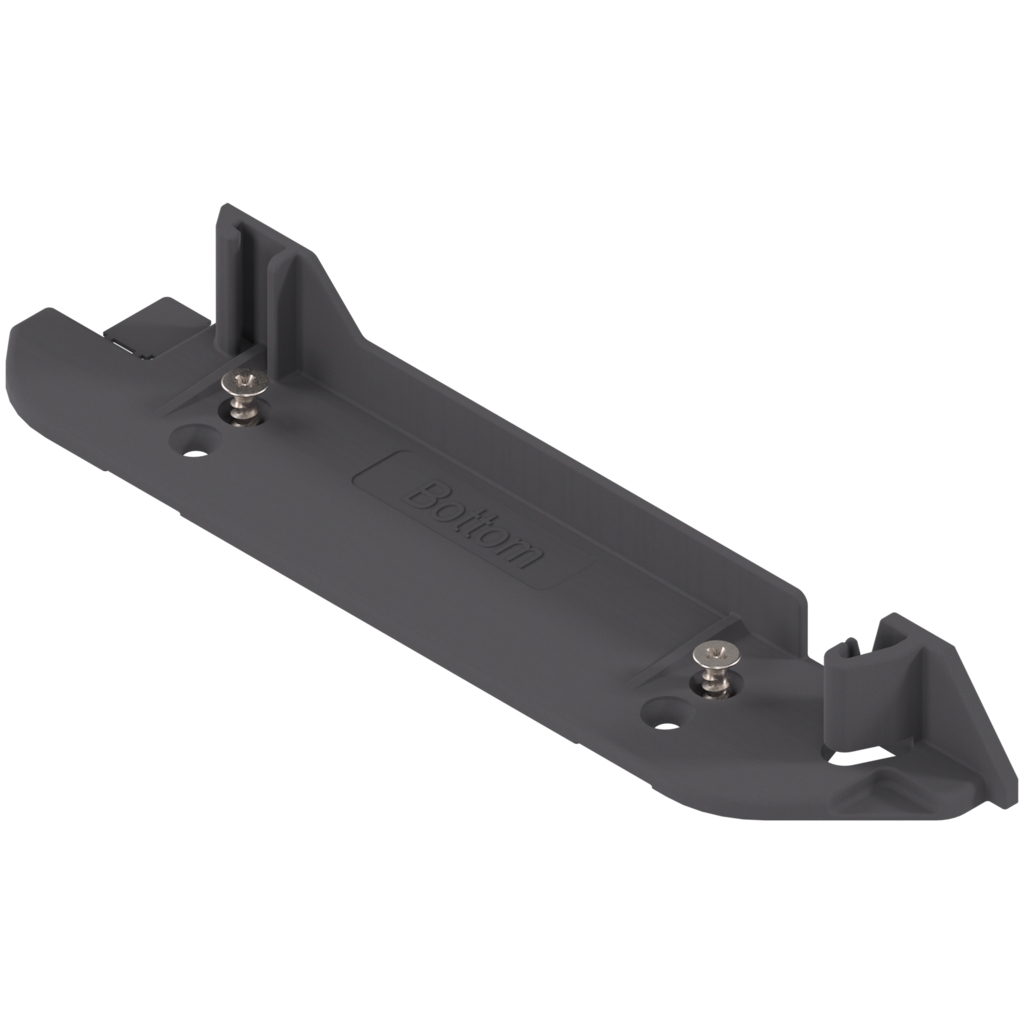

SERVO-DRIVE Bracket profile attachment bottom

SERVO-DRIVE Bracket profile attachment bottom
SERVO-DRIVE Bracket profile attachment bottom
Ident no: 01004383
Part no.: Z10D01E1.01TPR-A U 50R737
Box qty: 50 pcs

SERVO-DRIVE Bracket profile attachment bottom
Ident no: 01004383 Part no.: Z10D01E1.01TPR-A U 50R737 Box qty: 50 pcs
error_outline

Please log in to see prices and availability.
info Product information expand_more

Product information

The bracket profile attachment is used to fix the bracket profile to vertical cross members in the cabinet.
  • Quick installation and secure retention in the hole due to split dowels
description Technical data expand_more

Technical data

type
Bracket profile attachment
side position
left/right
material
nylon
colour/surface
RAL 7037 dust grey
fixing method
with EXPANDO split dowels
