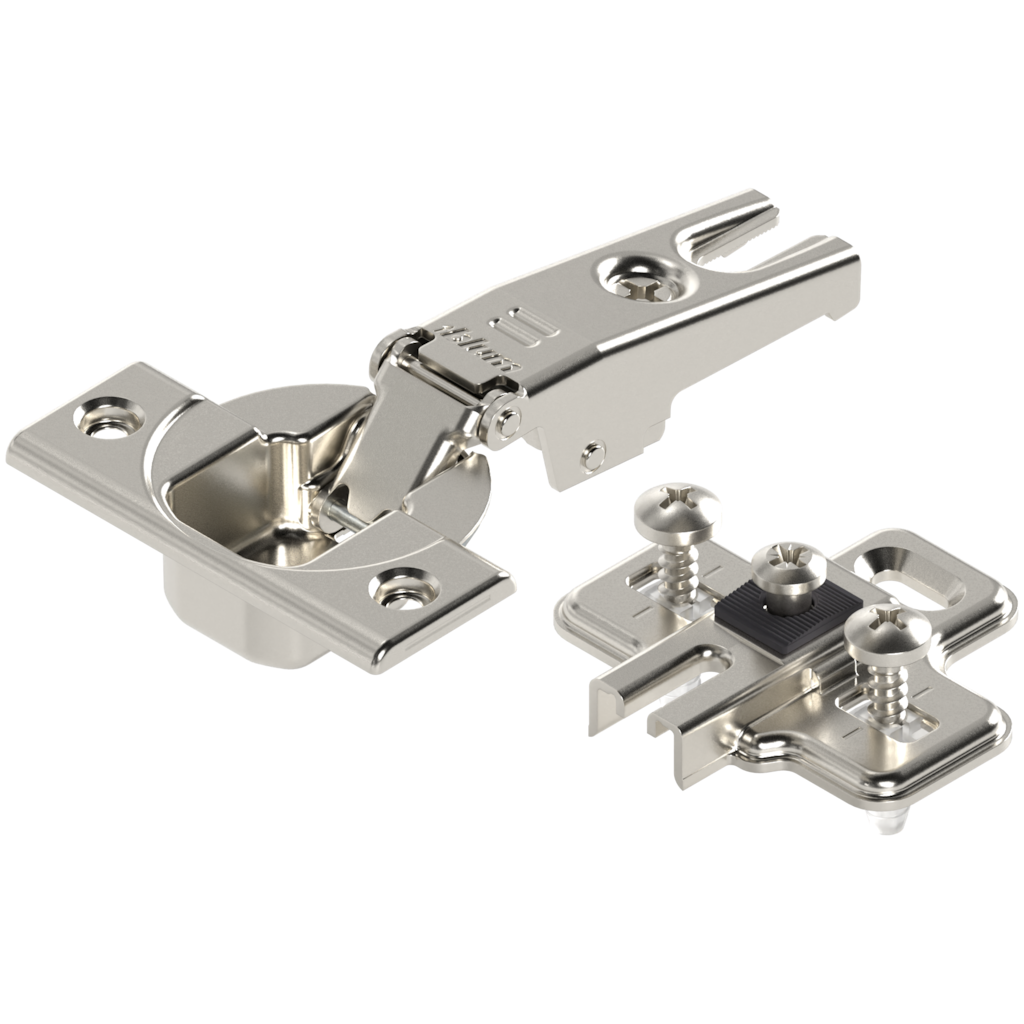

MODUL Refrigerator facade door hinge component bundle

MODUL Refrigerator facade door hinge component bundle
MODUL Refrigerator facade door hinge component bundle
Ident no: 02477518
Part no.: 91K9550 MB+P GR M NI
Box qty: 1 pc

MODUL Refrigerator facade door hinge component bundle
Ident no: 02477518 Part no.: 91K9550 MB+P GR M NI Box qty: 1 pc
error_outline

Please log in to see prices and availability.
info Product information expand_more

Product information

Due to its low construction height, the MODUL furniture hinge with combined slide-on and screw-on technology is perfect for refrigerators with doors connected with a sliding mechanism. It can even be used for thicker cabinet sides and front thicknesses of up to around 30 mm. Doors can also be mounted and adjusted for refrigerators that have already been installed.
  • Suitable for the SERVO-DRIVE electrical opening support system
  • 3-dimensional front adjustment (with mounting plate) for convenient adjustment and a uniform gap layout
  • The 3-dimensional adjustment feature is also readily accessible when the refrigerator is installed
  • The front can be removed when the refrigerator is in place
  • The refrigerator can be positioned inside the cabinet even when the front is attached
description Technical data expand_more

Technical data

type
Refrigerator facade door hinge
form of delivery
component bundle
boss fixing
for screwing on
colour/surface
nickel plated
boss overlay in factory setting
11.00 mm
