AVENTOS HL top lever, distribution packaging

AVENTOS HL top lever, distribution packaging
AVENTOS HL top lever, distribution packaging
Ident no: 08484930
Part no: 22L3200 HEBEL S2 NI
Box qty: 1 pc

AVENTOS HL top lever, distribution packaging
Ident no: 08484930 Part no: 22L3200 HEBEL S2 NI Box qty: 1 pc
error_outline

Please log in to see prices and availability.
info Product information expand_more

Product information

The lever arm secures the connection between the lift mechanism and the front fixing bracket and ensures stable motion when opening and closing the wall cabinet front.
  • Tool-free mounting on the lift mechanism thanks to the reliable CLIP assembly method
  • Removable lever arm on the lift mechanism simplifies furniture manufacturing and kitchen assembly
description Technical data expand_more

Technical data

type
lever
Lift system
AVENTOS HL top
suitable for lift system type
HL top
lever type
22L320x
min. front height
268.00 mm
widgets Accessories expand_more

Accessories

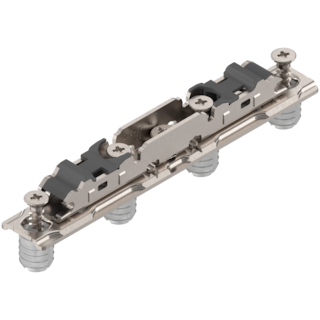

Front fixing brackets
Front fixing brackets Recommended
3 items

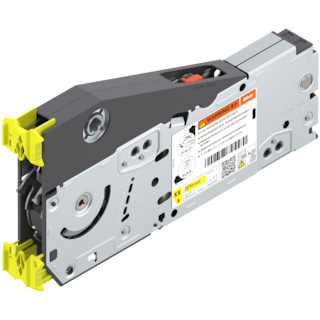

Lift mechanism
Lift mechanism Recommended
1 item
Lift systems
Lift systems Recommended
1 item
