AVENTOS HF top lever

AVENTOS HF top lever
AVENTOS HF top lever
Ident no: 03048304
Part no: 22F3501 TE-HEB V42 NI
Box qty: 42 pcs

AVENTOS HF top lever

for cabinet height
expand_more
Ident no: 03048304 Part no: 22F3501 TE-HEB V42 NI Box qty: 42 pcs
error_outline

Please log in to see prices and availability.
info Product information expand_more

Product information

The lever arm secures the connection between the lift mechanism and the front fixing bracket and ensures stable motion when opening and closing the wall cabinet front.
  • Tool-free mounting on the lift mechanism thanks to the reliable CLIP assembly method
  • Removable lever arm on the lift mechanism simplifies furniture manufacturing and kitchen assembly
description Technical data expand_more

Technical data

type
lever
Lift system
AVENTOS HF top
suitable for lift system type
HF top
lever type
22F350x
min. front height
283.00 mm
widgets Accessories expand_more

Accessories

Front fixing brackets
Front fixing brackets Recommended
1 item

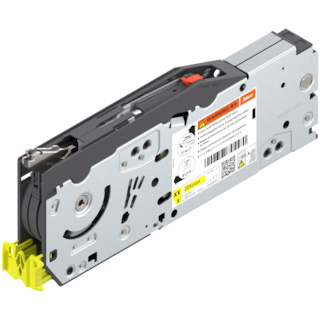

Lift mechanism
Lift mechanism Recommended
2 items
